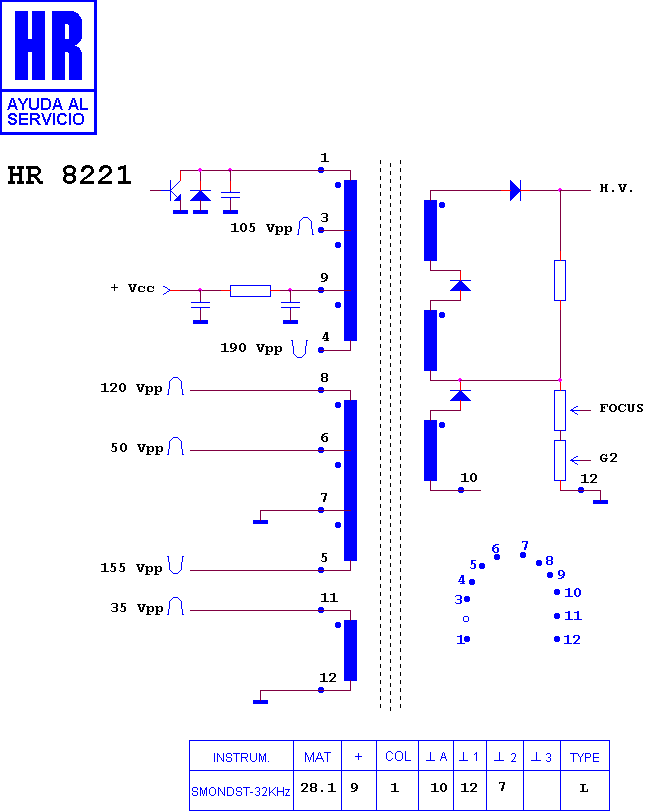

HR 8221

type SM · family 1YP · 28.1 kV maximum anode voltage · L° deflection · 4 windings · 410 g

Manufacturer equivalents (3)

103601.20 · 40327-19 · HR 8221

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 8225

Notes

COD-038 THIS HR TRANSFORMER HAS THE PIN GROUND OF FOCUS AND SCREEN POTENTIOMETERS CONNECTED INTERNALLY.
