HR 80118

38.1 kV maximum anode voltage · 110° deflection · 3 windings · 410 g

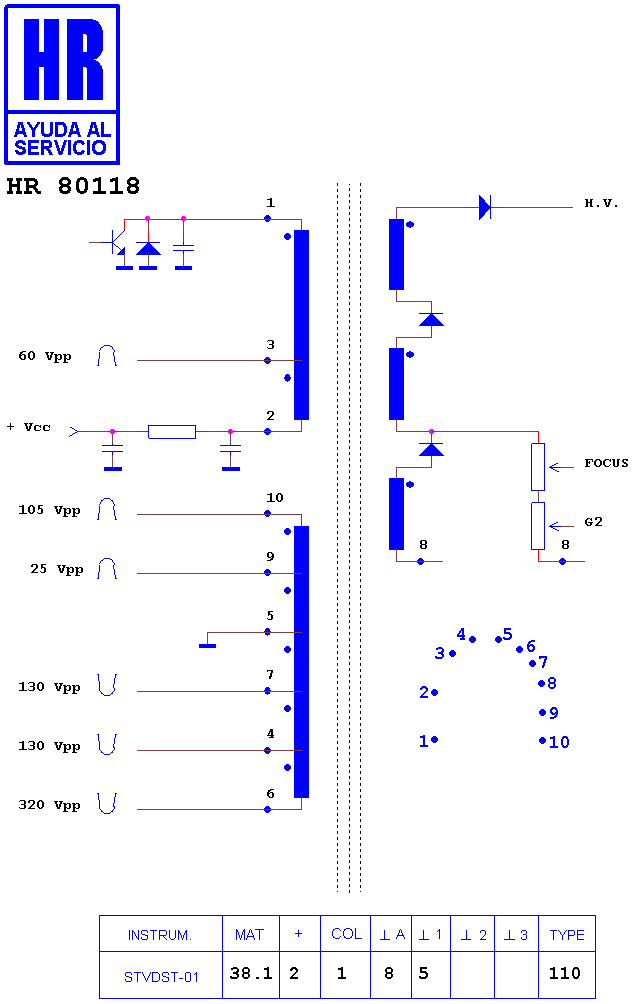

Schematic diagram for HR 80118
schematic (archived)

Manufacturer equivalents (5)

001-229084-13 · 02011317 · 291084 · BSC29-1084 · CF0801-291084

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 6379

Fitted to (19)

AKAI CTG 2501 E · ANS 29 T 1 S · GRUNDIG 8296 NK · GRUNDIG 8297 NK · GRUNDIG 9520 · GRUNDIG 9630 NK · IRRADIO TVD 293 F 2 · JOCEL GT 3329 A · JOCEL GT 3929 A · MEDION MD 3791 VT · METZ 2029 · METZ 929 F · PILOT PIL 8296 NK · PILOT PIL 8297 · ROWA GT 3329 A · SAIVOD 29 C 1 S · TEAC CTF 683 · TENSAI TCT 14 X · YOS VC 3718
