HR 6379

type ST · family 1BS2 · 29.1 kV maximum anode voltage · 110° deflection · 4 windings · 410 g

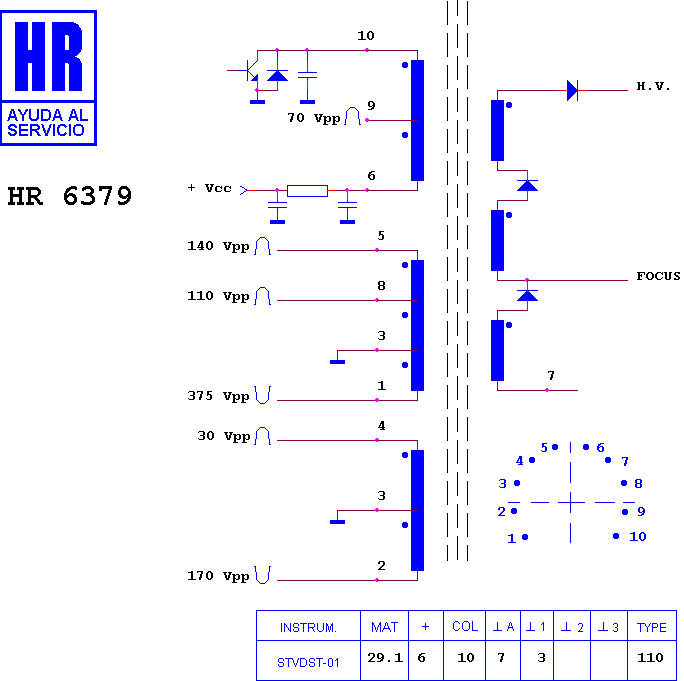

Schematic diagram for HR 6379
schematic

Manufacturer equivalents (9)

154 040 · 154 040 A · 154033A · 154046A · 154048A · 154051A · MSH-S361G · MSH-S361G/8 · SP 103 A

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 80118 · HR 8889 · HR 7707 · HR 80043

Notes

THIS HR TRANSFORMER HAS THE PIN GROUND OF FOCUS AND SCREEN POTENTIOMETERS CONNECTED INTERNALLY.
