HR 80071

51.1 kV maximum anode voltage · 110° deflection · 4 windings · 400 g

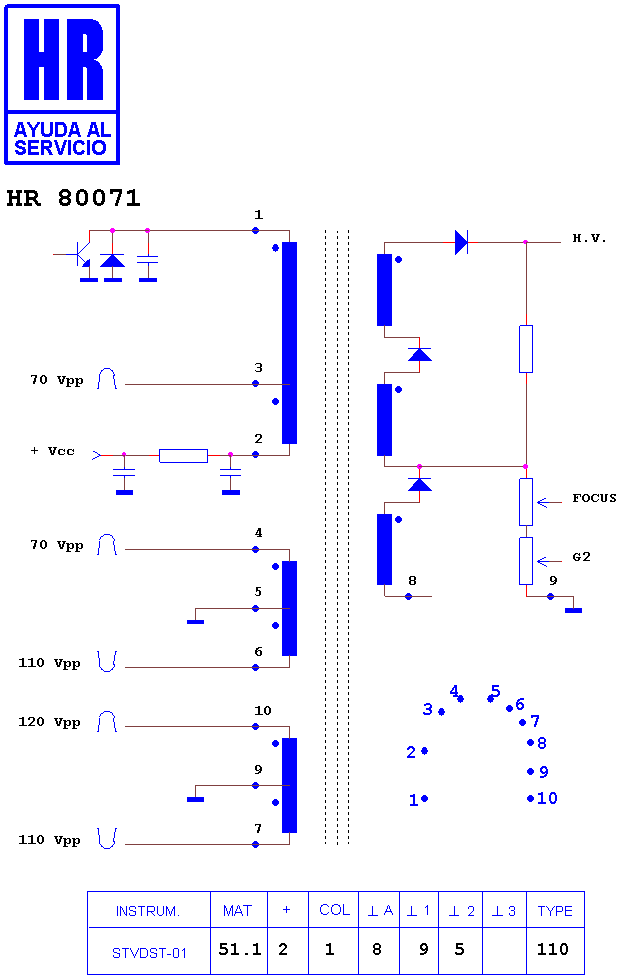

Schematic diagram for HR 80071
schematic (archived)

Manufacturer equivalents (6)

1372.0131 · 1372.0131A · 242253100063 · 242253100085 · HR 80071 · JF0501-21154A

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 8253 · HR 5801

Fitted to (1)

PHILIPS 28 PT 7120
