HR 7790

type ST · family 1YP · 28 kV maximum anode voltage · 90° deflection · 3 windings · 382 g

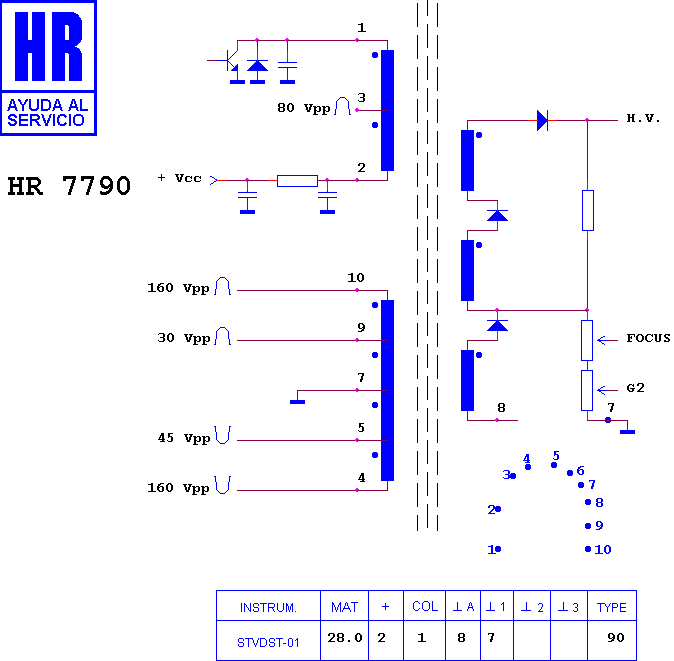

Schematic diagram for HR 7790
schematic

Manufacturer equivalents (2)

F 1625 CE · RTRNF1625CEZZ

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 7872 · HR 7298 · HR 7785 · HR 7681 · HR 7268

Notes

THIS HR TRANSFORMER HAS THE PIN GROUND OF FOCUS AND SCREEN POTENTIOMETERS CONNECTED INTERNALLY.

Fitted to (1)

SHARP CX 6378

Search this part in the full database
