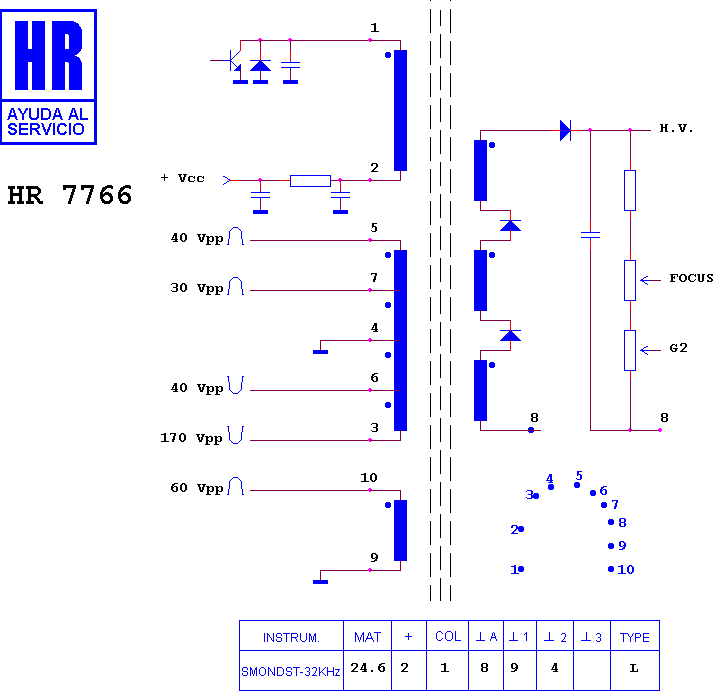

HR 7766

type SM · family 1WP1 · 24.6 kV maximum anode voltage · L° deflection · 4 windings · 426 g

Manufacturer equivalents (5)

047 105 647 · 047 105 648 · 47105647 · 47105648 · MAT 33119

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

Notes

COD-001 ATENTION;DON'T INVERT THE CONNECTION OF THE EXTERNALSINCRONIZATION WINDING. COD-038 THIS HR TRANSFORMER HAS THE PIN GROUND OF FOCUS AND SCREEN POTENTIOMETERS CONNECTED INTERNALLY.

Fitted to (10)

DELL MONITOR · DELL VM 2 VGA · NEC 2 A · NEC CZ 805 A · NEC JC 1403 · NEC JC 1403 HMED · NEC JC 1404 HMED · NEC MONITOR · NEC MONITOR MULTISYNC · NEC MONITOR MULTISYNC 2 A

Search this part in the full database
