HR 7375

type ST · family 1ACP · 21.7 kV maximum anode voltage · 90° deflection · 4 windings · 434 g

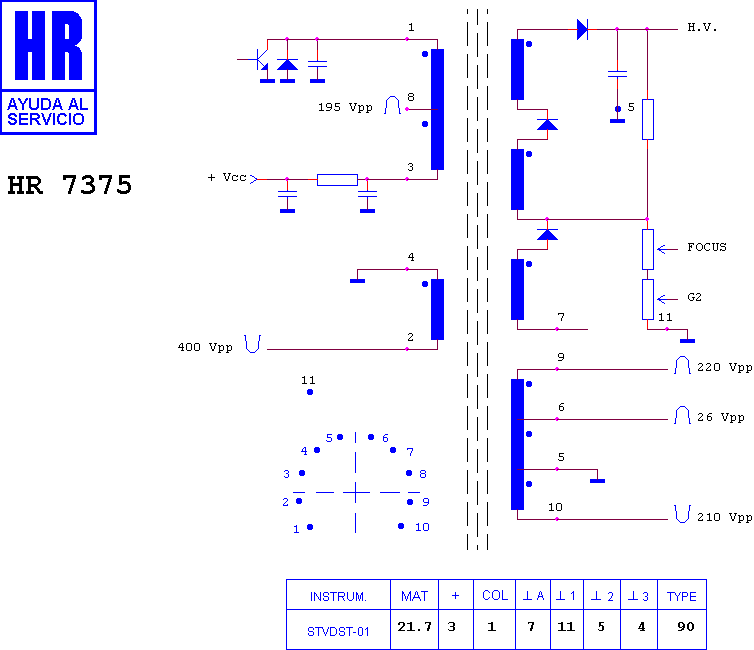

Schematic diagram for HR 7375
schematic
Schematic diagram for HR 7375
schematic (archived)

Manufacturer equivalents (1)

28020280

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 7270

Fitted to (4)

HANTAREX MONITOR · HANTAREX POLO BIF UTF301 · SAMBER'S / NUOVA SAMBER'S MONITOR · SAMBER'S / NUOVA SAMBER'S POLO BIF UTF301
