HR 7343

type ST · family 1NP1 · 21.4 kV maximum anode voltage · 90° deflection · 3 windings · 278 g

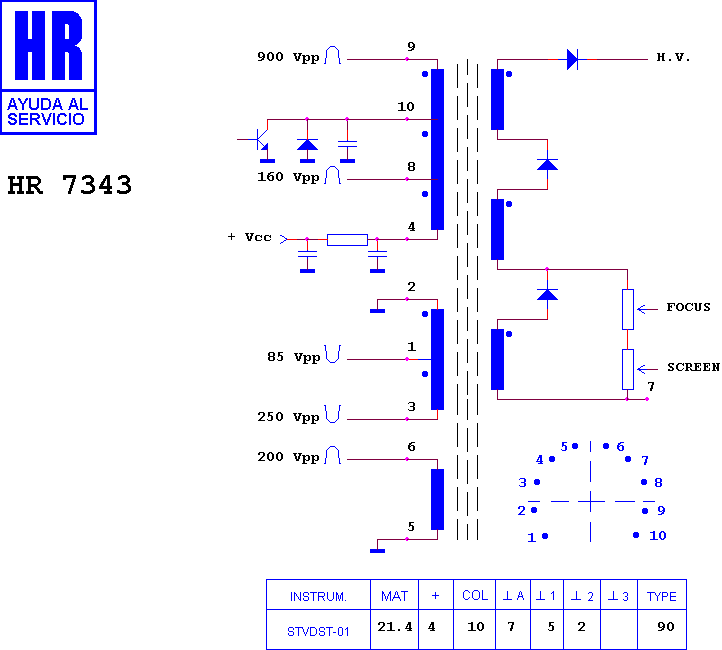

Schematic diagram for HR 7343
schematic

Manufacturer equivalents (1)

2433652

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 7108

Fitted to (4)

NORDMENDE CHASIS ICC 3 S · SABA CHASIS ICC 3 S · TELEFUNKEN CHASIS ICC 3 S · THOMSON CHASIS ICC 3 S
