HR 7108

type ST · family 1NP1 · 21.4 kV maximum anode voltage · 90° deflection · 3 windings · 278 g

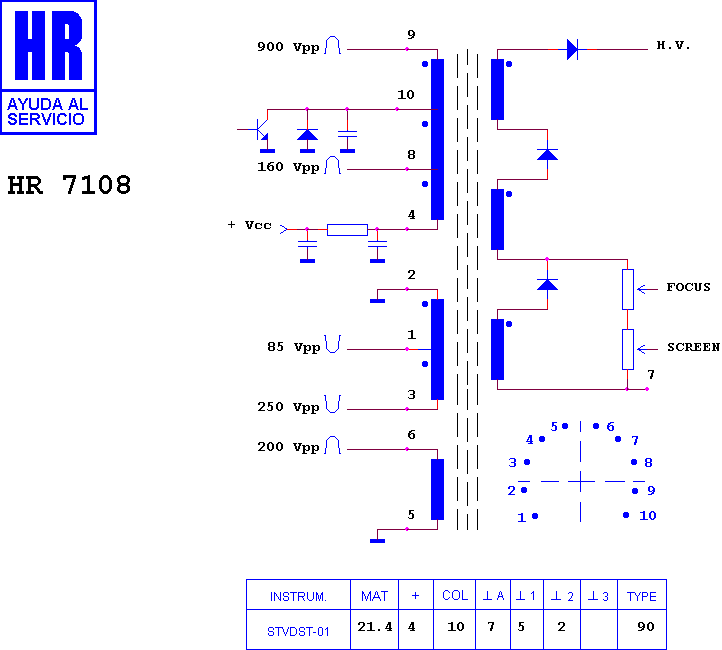

Schematic diagram for HR 7108
schematic

Manufacturer equivalents (9)

003301026 · 2433941 · 266.021 · 4900 051 860 · 534 TX 0148 · BSC 24-0176 · FAT3812 · KN3812 · ME/6200-00

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 7343

Notes

THIS HR TRANSFORMER HAS THE PIN GROUND OF FOCUS AND SCREEN POTENTIOMETERS CONNECTED INTERNALLY.
