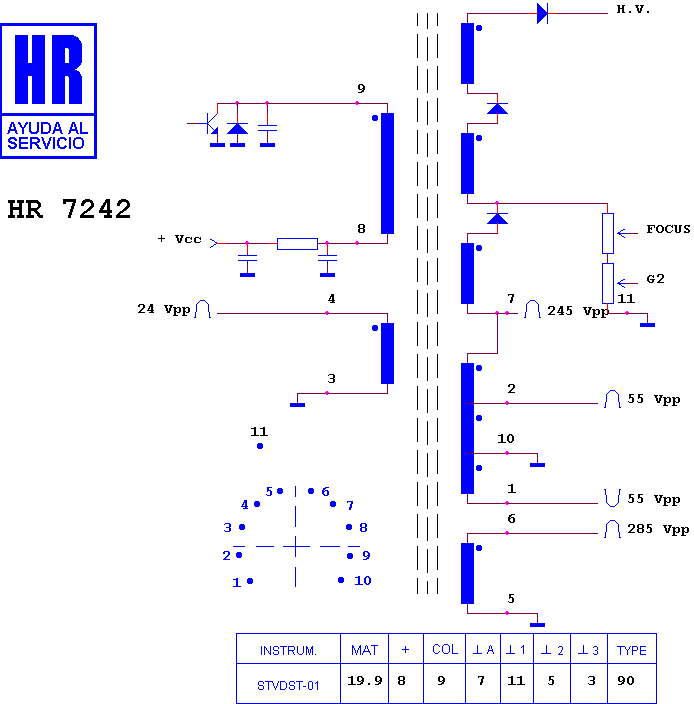

HR 7242

type ST · family 1AP1 · 19.9 kV maximum anode voltage · 90° deflection · 4 windings · 347 g

Manufacturer equivalents (11)

003031005 · 051.581 · 051.657 · 051.660 · 051.664 · 1172.0397 · 1242.0205 · 1242.0208 · 154 108 B · RO 687 · TR 687

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

Fitted to (15)

ANSONIC 2155 N · ANSONIC CHASIS SIESTA 10.3 · AUDIO VISION CHASIS SIESTA 10.3 · BEKO - BEKOTEKNIK 11214 T · BEKO - BEKOTEKNIK 11221 T · BEKO - BEKOTEKNIK 12220 · BEKO - BEKOTEKNIK 18221 T · BEKO - BEKOTEKNIK CTV · BEKO - BEKOTEKNIK SANAY COLOR TV 63 · CROWN - CROWN MUSTANG CHASIS SIESTA 10.3 · EMERSON CHASIS SIESTA 10.3 · HYPER CHASIS SIESTA 10.3 · NEI CHASIS SIESTA 10.3 · SELTI MONITOR · SELTI VIDEO GAME
