HR 6001

type ST · family 1BP · 17.1 kV maximum anode voltage · 90° deflection · 2 windings · 420 g

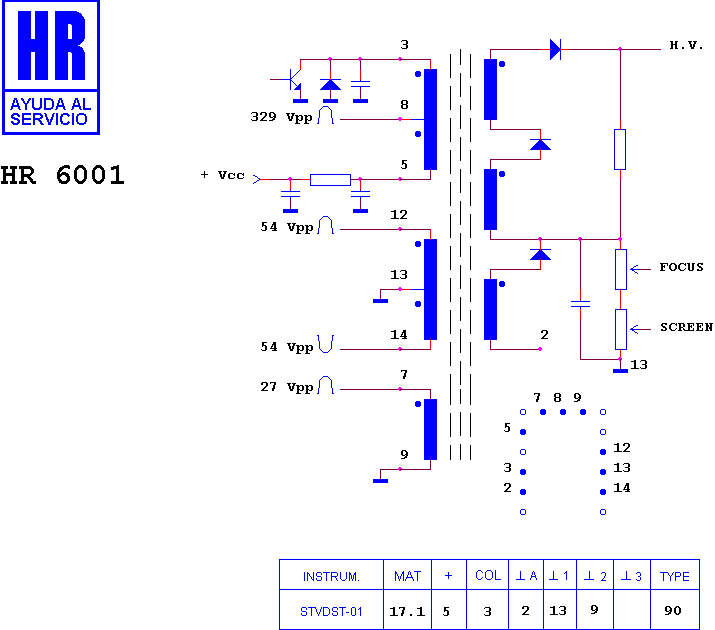

Schematic diagram for HR 6001
schematic

Manufacturer equivalents (2)

HR 6001 · HR 6001 B

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 7242

Fitted to (1)

IBERO-SHON - IBEROPHON TVC 90§ FSQ D.S.
