HR 7179

type ST · family 1AP2 · 4 windings · 322 g

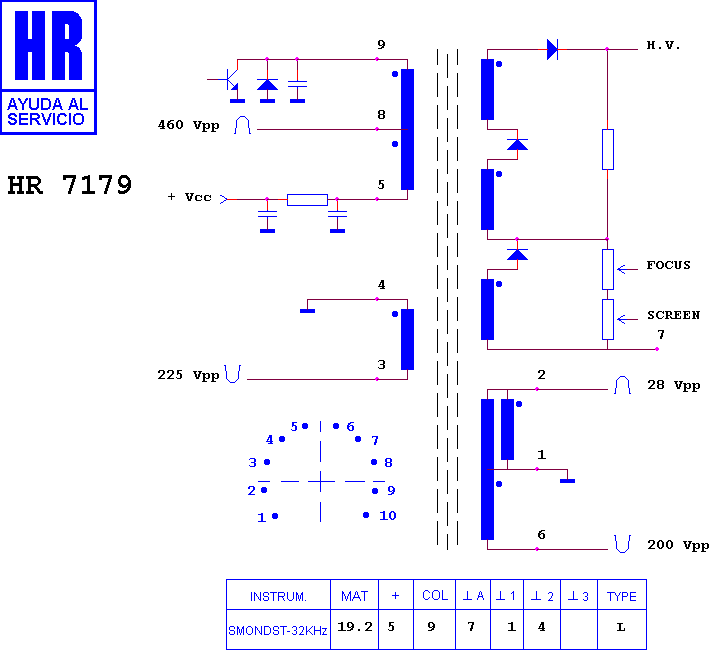

Schematic diagram for HR 7179
schematic

Manufacturer equivalents (3)

003031119 · 46 155 0022 · MAT33123

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 6269 · HR 80111 · HR 80304 · HR 8828 · HR 80307 · HR 80191

Notes

THIS HR TRANSFORMER HAS THE PIN GROUND OF FOCUS AND SCREEN POTENTIOMETERS CONNECTED INTERNALLY.

Fitted to (2)

BEEHIVE 9192 C · BEEHIVE MONITOR
