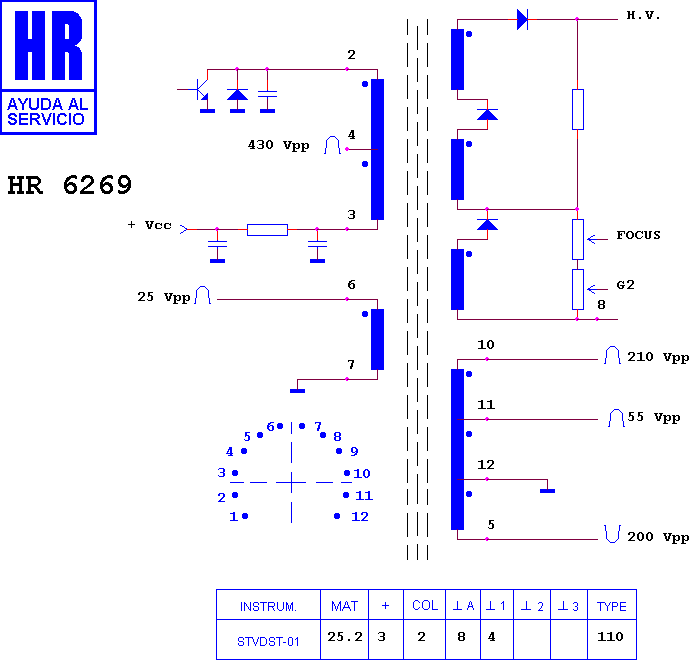

HR 6269

type ST · family 1BP1 · 25.2 kV maximum anode voltage · 110° deflection · 4 windings · 370 g

Manufacturer equivalents (1)

HR 6269-00

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 7179 · HR 80111

Notes

COD-038 THIS HR TRANSFORMER HAS THE PIN GROUND OF FOCUS AND SCREEN POTENTIOMETERS CONNECTED INTERNALLY.
