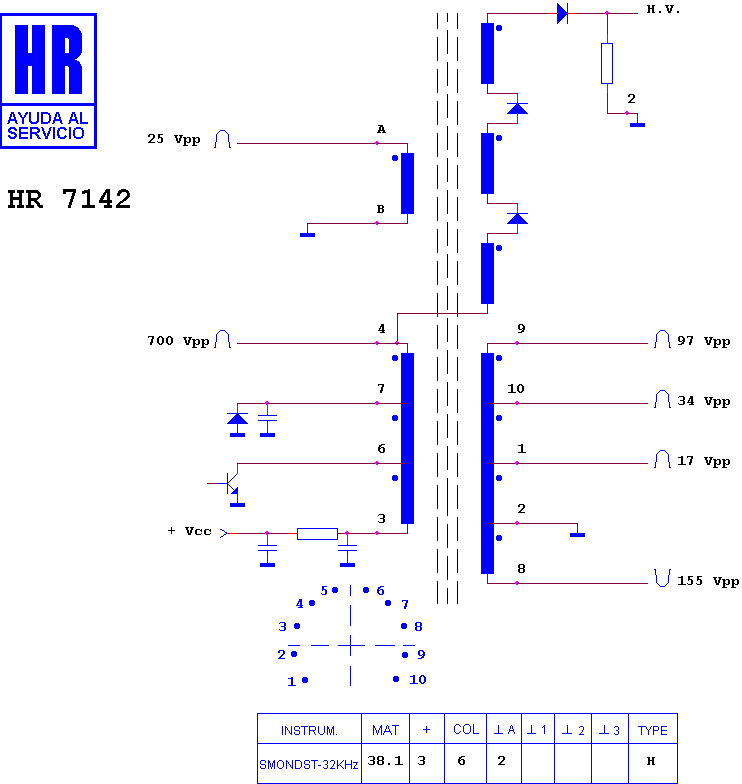

HR 7142

type SM · family 1AS1 · 38.1 kV maximum anode voltage · H° deflection · 4 windings · 350 g

Manufacturer equivalents (8)

5062664866 · ME/0330-00 · RO 243 · RWT 0017 · RWT 1017 · SW15 1 SW · TFB 648 F · TR 263

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 46257

Accessories (1)

Parts the catalogue lists alongside this one. They are separate items, not part of the transformer.

• HR 16524 — Focus control

Notes

COD-038 THIS HR TRANSFORMER HAS THE PIN GROUND OF FOCUS AND SCREEN POTENTIOMETERS CONNECTED INTERNALLY.

Fitted to (10)

IBM 8503 · IBM 8503 MONO · IBM MONITOR · ICL 14728 · ICL 14728/002 · ICL MONITOR · PACKARD BELL 8505 · PACKARD BELL MONITOR · TVM MG 14 · TVM MONITOR

Search this part in the full database
