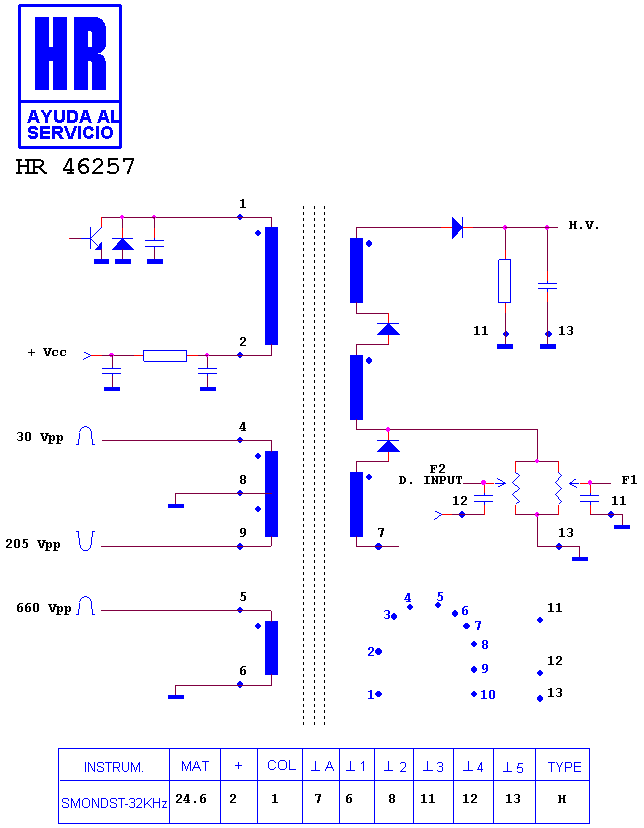

HR 46257

type SM · family 1WD · 24.6 kV maximum anode voltage · H° deflection · 4 windings · 444 g

Manufacturer equivalents (3)

340-006031-00 · FQB 17 A 002 · FQB 17 A 002 P

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

Notes

HEATSINK MUST BE PREFORMED BEFORE INSTALLING THE HR TRANSFORMER (SEE INSTRUCTIONS) HEATSINK MUST BE PREFORMED BEFORE INSTALLING THE HR TRANSFORMER (SEE INSTRUCTIONS)

Fitted to (23)

FUJITSU MCM 171 E · FUJITSU MONITOR · HANSOL 710 A · HANSOL 710 E · HANSOL 710 P · HANSOL B 17 CL · HANSOL D 17 CL · HANSOL F 5000 · HANSOL MAZELLAN 710 A · HANSOL MONITOR · KDS-KOREA DATA SYSTEMS ECONOMO 532 · KDS-KOREA DATA SYSTEMS KDS 1920 PF · KDS-KOREA DATA SYSTEMS MONITOR · SAMSUNG 76 E · SAMSUNG MONITOR · SIEMENS E 17 CL · SIEMENS MCM 171 E · SIEMENS MONITOR · VIEWPOINT E 17 CL · VIEWPOINT MONITOR · VIEWPOINT VP 1770 VHT · WAVELIGHT E 17 CL · WAVELIGHT MONITOR

Search this part in the full database
