HR 7077

type SM · family 1NP1 · 22 kV maximum anode voltage · L° deflection · 3 windings · 280 g

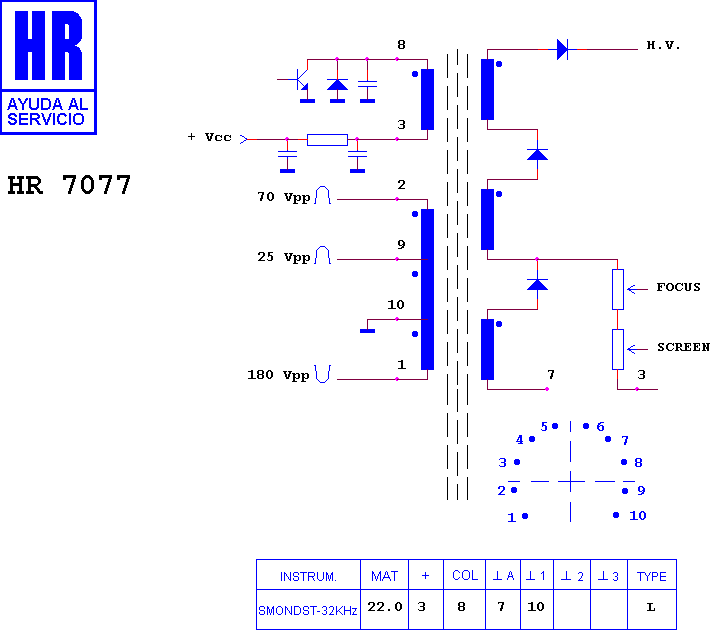

Schematic diagram for HR 7077
schematic

Manufacturer equivalents (8)

1105.0748 · 1105.0928 · 1192.0158 · 1192.0168 · 144838 S · 28025220 · 280260850 · 28026850

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 7936

Fitted to (9)

HANTAREX ETV 340 26 KHZ · HANTAREX MONITOR · HANTAREX MTC 9110 · HANTAREX MTC 9110 2528 · HANTAREX VIDEO GAME · OLIVETTI ETV 340 · OLIVETTI M 200 · OLIVETTI MONITOR · OLIVETTI PERSONAL COMPUTER

Search this part in the full database
