HR 6684

type ST · family 1BS1 · 43.8 kV maximum anode voltage · 110° deflection · 4 windings · 367 g

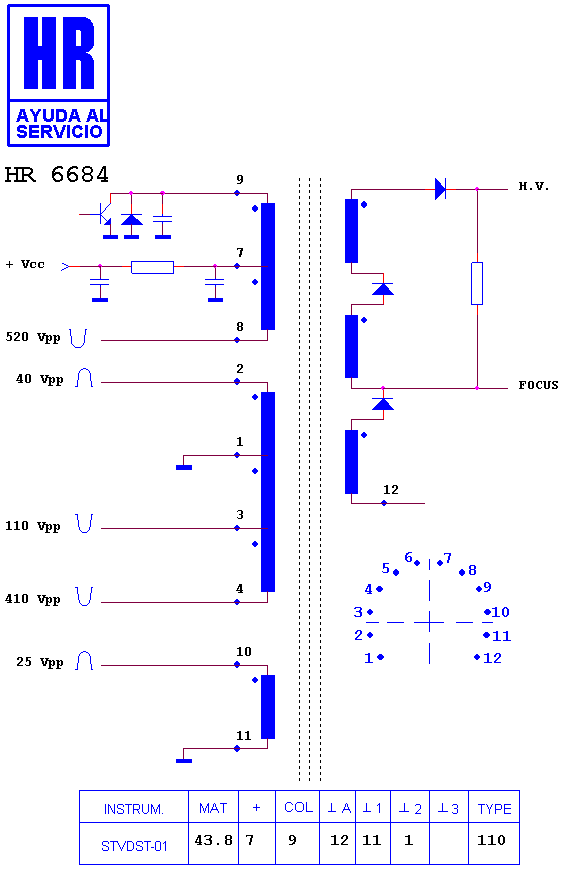

Schematic diagram for HR 6684
schematic

Manufacturer equivalents (2)

105177.40 · 40325-43

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 6672

Fitted to (9)

BRE CHASIS ICC 19 · FERGUSON-THORN-EMI CHASIS ICC 19 · NORDMENDE CHASIS ICC 19 · SABA CHASIS ICC 19 · TELEFUNKEN CHASIS ICC 19 · THOMSON 28 DG 35 UD · THOMSON 28 DT 78 KP · THOMSON 28 WS 73 KD · THOMSON CHASIS ICC 19
