HR 6672

type ST · family 1BS1 · 46.9 kV maximum anode voltage · 110° deflection · 4 windings · 367 g

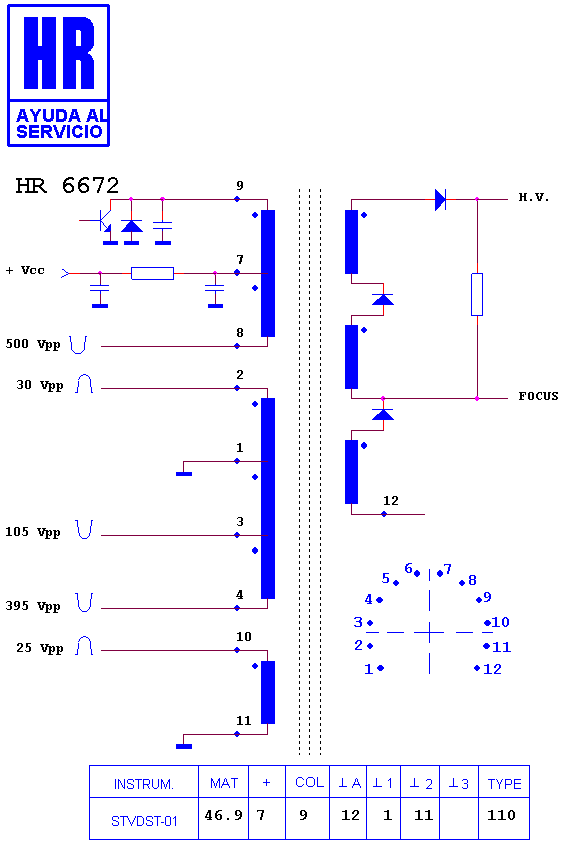

Schematic diagram for HR 6672
schematic

Manufacturer equivalents (2)

105177.20 · 40325-42

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 6684

Fitted to (13)

NORDMENDE CHASIS ICC 19 · SABA CHASIS ICC 19 · TELEFUNKEN 540 KE · TELEFUNKEN CHASIS ICC 19 · TELEFUNKEN DF 540 KE · TELEFUNKEN DH 540 KE · TELEFUNKEN PALCOLOR DH · THOMSON 25 DU 78 K · THOMSON 28 DH 78 K · THOMSON 29 DH 78 K · THOMSON 29 DU 78 K · THOMSON 33 MS 35 UD · THOMSON CHASIS ICC 19
