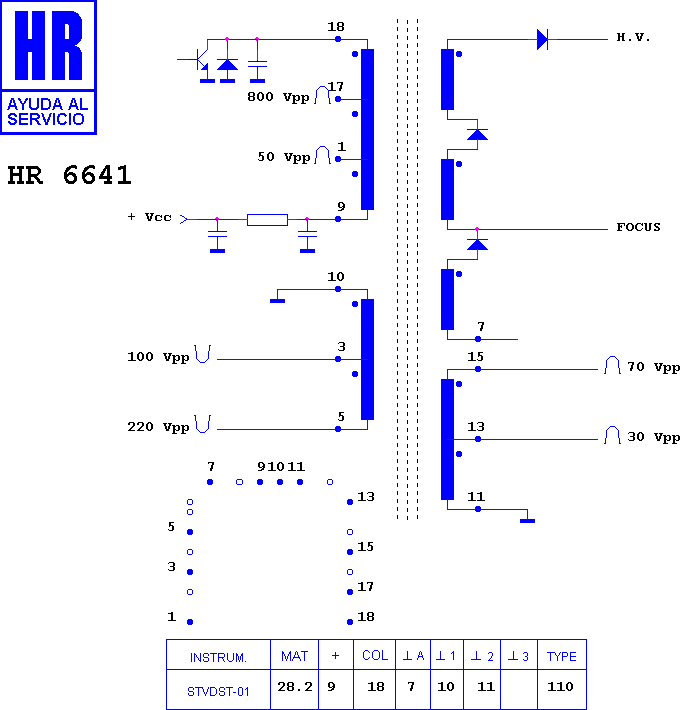

HR 6641

type ST · family 1IS1 · 28.2 kV maximum anode voltage · 110° deflection · 4 windings · 412 g

Manufacturer equivalents (6)

3122 268 30500 · 3122 268 30501 · 3122 268 30502 · 362521000070 · AT 2077/93 · AT 2077/93 ZP

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 6374 · HR 6158

Accessories (2)

Parts the catalogue lists alongside this one. They are separate items, not part of the transformer.

• HR 1660 — EHT anode lead
• HR 16524 — Focus control

Fitted to (9)

BRUNS CHASIS 110 INVAR · BRUNS CHASIS 1208.05-30.00:00 · RFT 63-1000 SAT · RFT 70-1000 · RFT 70-105 · RFT 70-3000 · RFT STASSFURT TV 63-1000 · RFT TV · STASSFURT 63-1000
