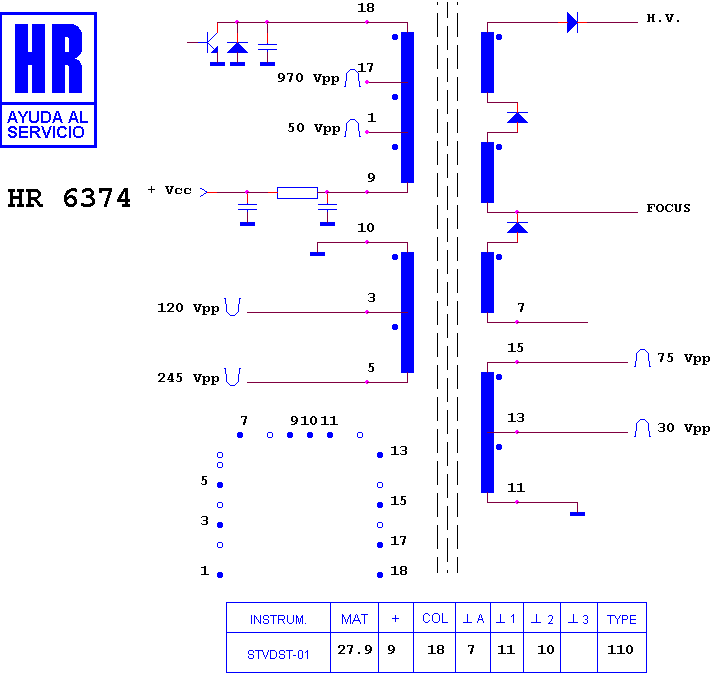

HR 6374

type ST · family 1IS1 · 27.9 kV maximum anode voltage · 110° deflection · 4 windings · 408 g

Manufacturer equivalents (1)

AT 2077/83 ZP

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

Fitted to (20)

BRUNS CHASIS 110§ FST · BRUNS CHASIS 110§ PIL · BRUNS CHASIS 1208.00-30.00:00 · BRUNS CHASIS 1208.00-30.00:40 · BRUNS CHASIS 1208.01-30.00:00 · BRUNS CHASIS 1208.13-30.00:00 · BRUNS CHASIS 1208.13-30.00:40 · BRUNS CHASIS 90§ FST · BRUNS TV 55-1000 · BRUNS TV 55-113 · BRUNS TV 63-1000 · BRUNS TV 63-102 · BRUNS TV 63-104 · BRUNS TV 70-100 · BRUNS TV 70-105 · BRUNS TV 70-111 · BRUNS TV 70-2000 · BRUNS TV 70-220 · RFT 70-111 TTN · RFT SIESTA TV
