HR 6599

type SM · family 1YP · 25.6 kV maximum anode voltage · L° deflection · 4 windings · 410 g

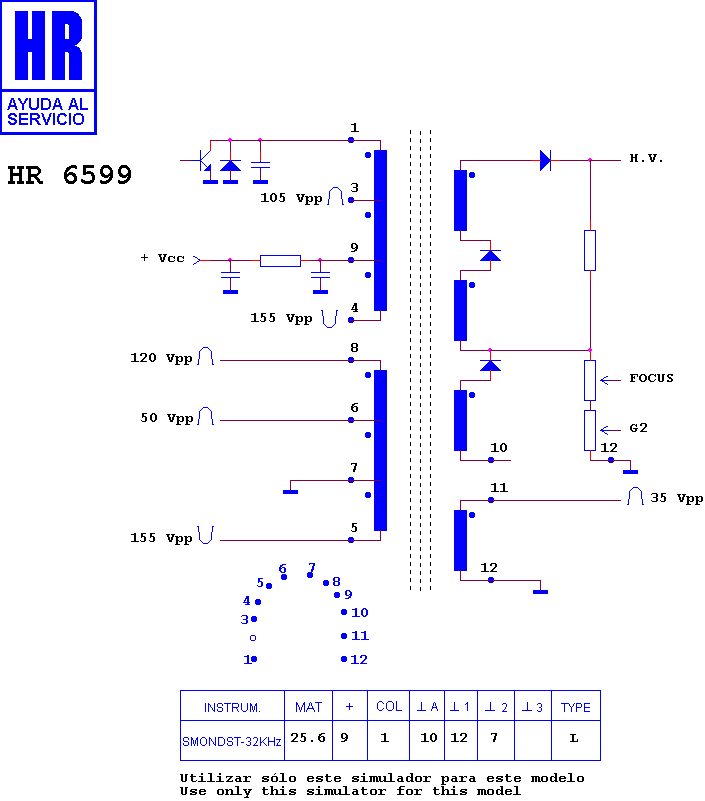

Schematic diagram for HR 6599
schematic

Manufacturer equivalents (12)

015000100 · 073.5015.0001.00 · 103039.10 · 103039.40 · 106039.40 · 106309.40 · 1302.0026 · 1362.5015 · 1362.5015A · 362513003034 · 40327-17 · 40330-52

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 8225

Notes

THIS HR TRANSFORMER HAS THE PIN GROUND OF FOCUS AND SCREEN POTENTIOMETERS CONNECTED INTERNALLY.

Fitted to (1)

TELRA CHASIS 100 HZ
