HR 6455

type SM · family 1IP · 18 kV maximum anode voltage · L° deflection · 4 windings · 450 g

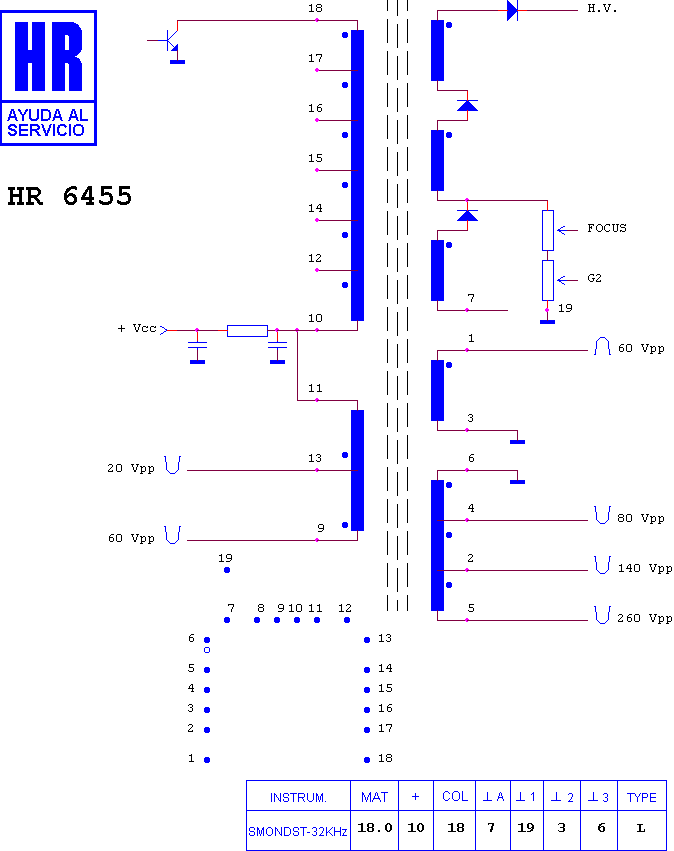

Schematic diagram for HR 6455
schematic

Manufacturer equivalents (12)

3122 138 37570 · 3122 138 37571 · 3122 138 37573 · 33786 · 37570 · 37571 · 37572 · 37573 · 37574 · 37575 · AT 2077/33 · FAT30458

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 8127

Fitted to (4)

COLOURMASTER AIRPORT · COLOURMASTER MONITOR · ZEND IB-VGA/1 · ZEND MONITOR
