HR 6378

type SM · family 1IP · 27.8 kV maximum anode voltage · L° deflection · 3 windings · 450 g

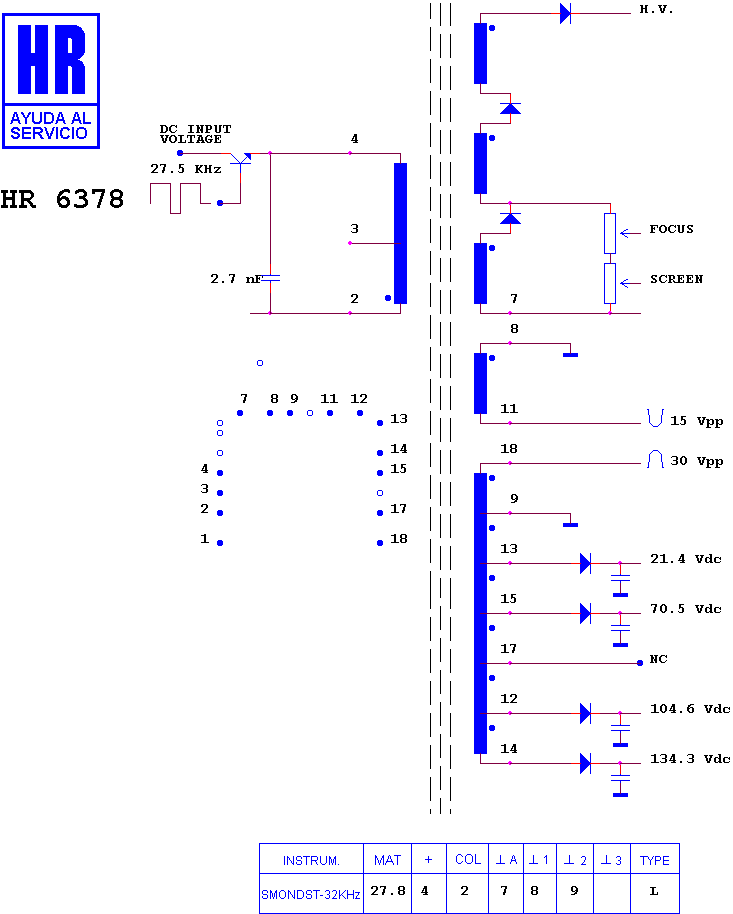

Schematic diagram for HR 6378
schematic

Manufacturer equivalents (20)

3122 138 36842 · 3122 138 36847 · 36840 · 36841 · 36842 · 36843 · 36844 · 36845 · 36846 · 36847 · 36848 · 36849 · 37100 · 37101 · 37102 · 37103 · 37104 · 37105 · AT 2077/46 A · MAT33113

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 6367

Notes

THIS HR TRANSFORMER HAS THE PIN GROUND OF FOCUS AND SCREEN POTENTIOMETERS CONNECTED INTERNALLY.
