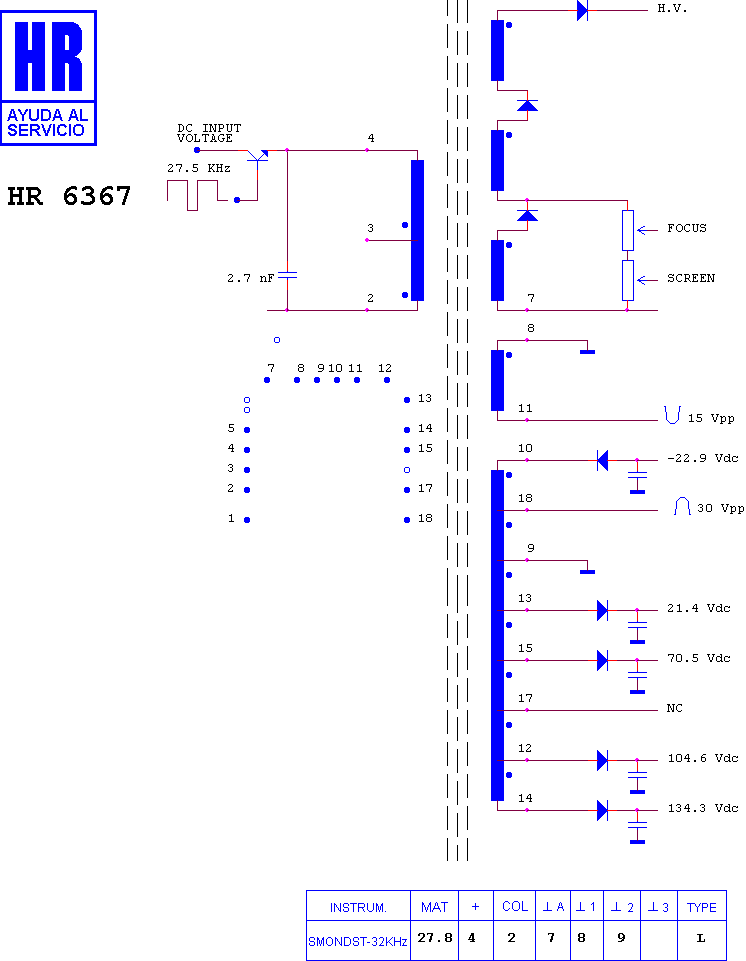

HR 6367

type SM · family 1IP · 27.8 kV maximum anode voltage · L° deflection · 3 windings · 450 g

Manufacturer equivalents (16)

3122 138 36865 · 3122 138 36866 · 3122 138 36867 · 36860 · 36861 · 36862 · 36863 · 36864 · 36865 · 36866 · 36867 · AT 2077/46 AP · AT 2077/46 R · HR 6367 · MAT 33425 · ME/0334-25

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 6378 · HR 9339

Accessories (1)

Parts the catalogue lists alongside this one. They are separate items, not part of the transformer.

• HR 16506 — EHT anode lead

Notes

COD-038 THIS HR TRANSFORMER HAS THE PIN GROUND OF FOCUS AND SCREEN POTENTIOMETERS CONNECTED INTERNALLY.

Fitted to (7)

IBM 3164 · IBM 3179 · IBM 3179 G · IBM 3192 · IBM 3192 C · IBM 3192 G · IBM MONITOR
