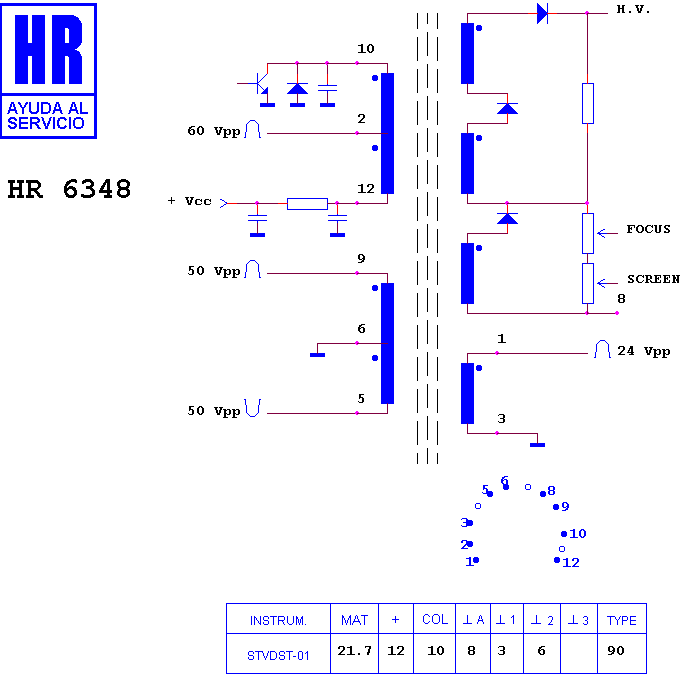

HR 6348

type ST · family 1QP · 21.7 kV maximum anode voltage · 90° deflection · 4 windings · 363 g

Manufacturer equivalents (1)

8 667 210 529 P 002

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 6319 · HR 7539

Accessories (1)

Parts the catalogue lists alongside this one. They are separate items, not part of the transformer.

• HR 1660 — EHT anode lead

Notes

COD-038 THIS HR TRANSFORMER HAS THE PIN GROUND OF FOCUS AND SCREEN POTENTIOMETERS CONNECTED INTERNALLY.
