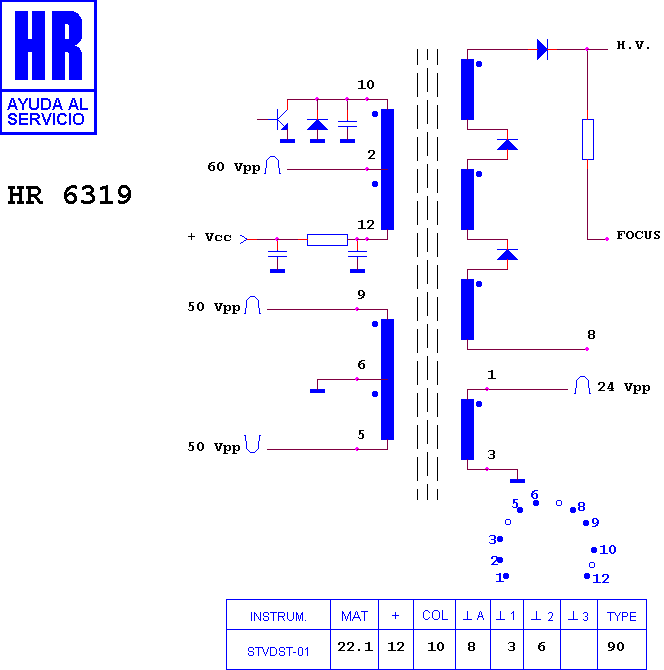

HR 6319

type ST · family 1QS · 22.1 kV maximum anode voltage · 90° deflection · 4 windings · 324 g

Manufacturer equivalents (7)

003220107 · 8 627 105 505 · 8 667 210 529 · FAT 3587 · RO 216 · TR 058 · TR 239

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 6348 · HR 7539

Accessories (1)

Parts the catalogue lists alongside this one. They are separate items, not part of the transformer.

• HR 1660 — EHT anode lead
