HR 6290

29.7 kV maximum anode voltage · 110° deflection · 4 windings · 425 g

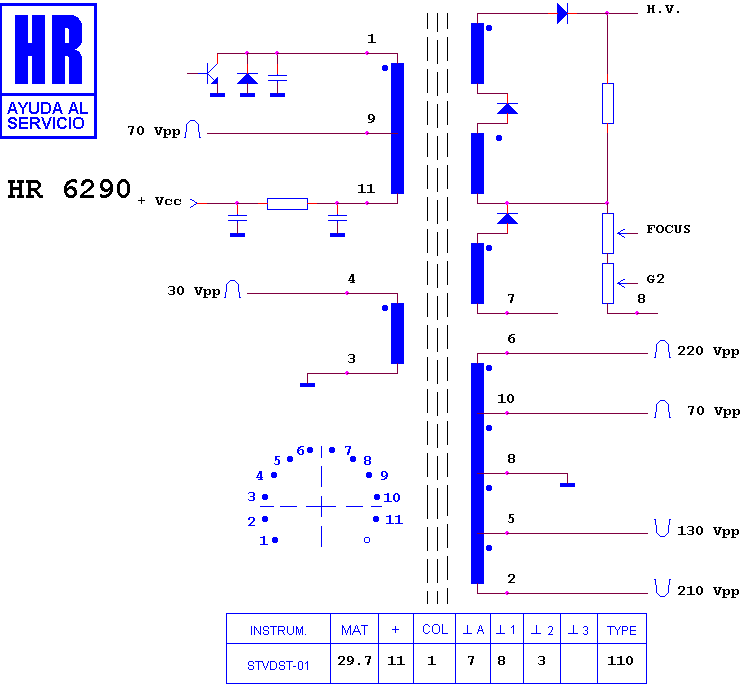

Schematic diagram for HR 6290
schematic
Schematic diagram for HR 6290
schematic (archived)

Manufacturer equivalents (1)

7003009000

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 6224 · HR 6212 · HR 8619

Fitted to (6)

HANTAREX CT 9000 IMR · HANTAREX CT 9000/1 · HANTAREX CT 9000/J · HANTAREX MONITOR · HANTAREX MONITOR · HANTAREX MONITOR
