HR 6262

type ST · family 1PS · 26.7 kV maximum anode voltage · 90° deflection · 5 windings · 600 g

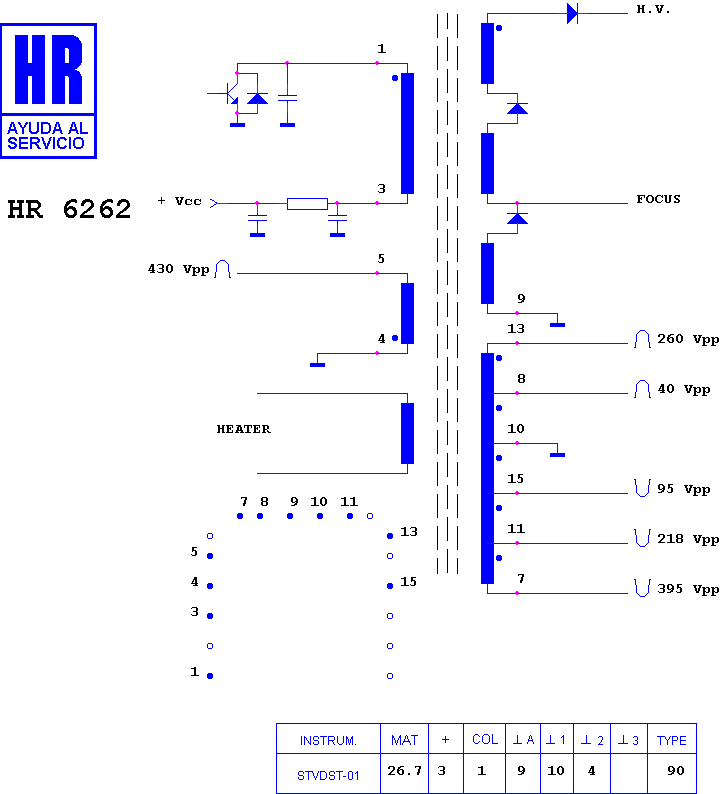

Schematic diagram for HR 6262
schematic

Manufacturer equivalents (4)

0036 1916 0001 · 361916-0001 · 361916-1 · 4835 148 87139

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 6261

Fitted to (1)

SYLVANIA RXS 198 WA 02
