HR 6239

type ST · family 1BS1 · 21.3 kV maximum anode voltage · 90° deflection · 4 windings · 365 g

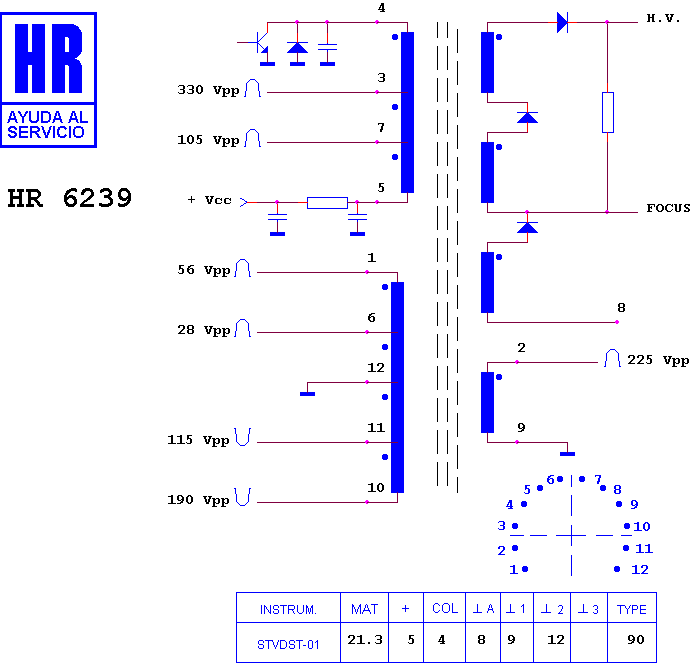

Schematic diagram for HR 6239
schematic

Manufacturer equivalents (11)

0047 328 700 · 260.646 · 309 311 956 · 473287.00 · 473287.01 · 534 TX 0229 · 534 TX 0231 · 534TX0382 · FAT3848 · ME/6266-00 · TR 4672

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 6165

Fitted to (29)

FERGUSON-THORN-EMI 51 K 4 · FERGUSON-THORN-EMI 51 L 3 · FERGUSON-THORN-EMI CHASIS ICC 5 · NORDMENDE 787.506 · NORDMENDE 787.506 B 00 · NORDMENDE 8.524 A · NORDMENDE 8.524 E · NORDMENDE 8.524 J · NORDMENDE CHASIS F 18 · NORDMENDE COMPUTER CONTROL 6 · NORDMENDE COMPUTER CONTROL 61 · NORDMENDE FUTURA 55 · SABA 5520 VT · SABA M 5520 · SABA M 5520 VT · TELEFUNKEN 210 E CE · TELEFUNKEN 210 SP · TELEFUNKEN 210 SP E CE · TELEFUNKEN 35 CV · TELEFUNKEN 350 CV · TELEFUNKEN 350 CV P · TELEFUNKEN CHASIS 314 954 164 · TELEFUNKEN CHASIS 314 954 165 · TELEFUNKEN CHASIS 514 954 163 · TELEFUNKEN CHASIS 518 · TELEFUNKEN P 35 CV · TELEFUNKEN P 350 CV · TELEFUNKEN PALCOLOR P · TELEFUNKEN PALCOLOR SP
