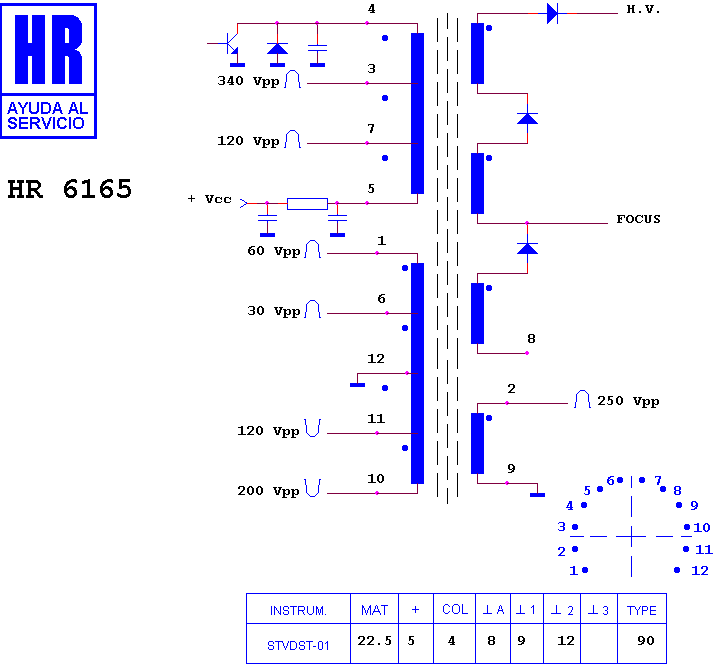

HR 6165

type ST · family 1BS1 · 22.5 kV maximum anode voltage · 90° deflection · 4 windings · 400 g

Manufacturer equivalents (17)

003370113 · 252.634 · 266.634 · 309 311 958 · 472421.00 · 472421.01 · 472721.01 · 525.634 · 534 TX 0208 · 534 TX 0364 · 8393 810 300 · 8493 810 300 · ETF40L1031BZ · FAT 3828 · HR 6165 · KN 3828 · ME/6109-00

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 6239

Accessories (2)

Parts the catalogue lists alongside this one. They are separate items, not part of the transformer.

• HR 1660 — EHT anode lead
• HR 16529 — Focus control

Fitted to (38)

BRANDT 55 557 T · BRANDT 55 559 T · BRANDT CHASIS 517 · NORDMENDE 3.201 · NORDMENDE 3031 · NORDMENDE 3201 · NORDMENDE 7.526 E · NORDMENDE 7.526 J · NORDMENDE 7.527 A · NORDMENDE 785.526 · NORDMENDE 785.526 B 01 · NORDMENDE 785.526 B 03 · NORDMENDE CHASIS F 16 M-03 · NORDMENDE CHASIS F 16-01 · NORDMENDE CHASIS F 16-02 · NORDMENDE CHASIS F 16-03 · NORDMENDE CHASIS ICC 5120 MP · NORDMENDE COLOR 3031 · NORDMENDE FUTURA M 55 · NORDMENDE SPECTRA 3201 · NORDMENDE SPECTRA COLOR 3031 · NORDMENDE SPECTRA COLOR 3201 · SABA CHASIS U · SABA M 5510 · SABA T 55 U 42 · SABA T 55 U 43 · SABA T 63 U 42 · SABA T 63 U 43 · SABA ULTRACOLOR · TELEFUNKEN 21 · TELEFUNKEN CHASIS 517 · TELEFUNKEN MP 210 · TELEFUNKEN MRN 21 · TELEFUNKEN PALCOLOR MRN · THOMSON 55 MPS 71 · THOMSON 55 MXP 83 · THOMSON 55 MXP 84 · THOMSON 55 MXP 86
