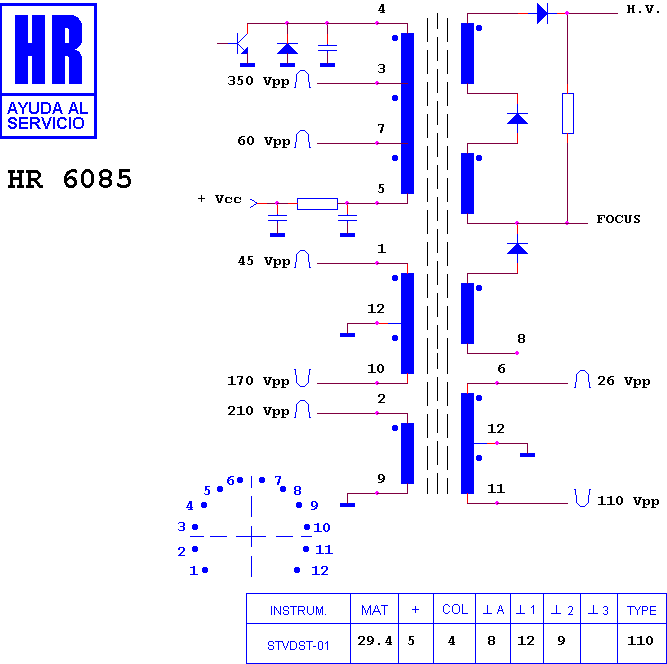

HR 6085

type ST · family 1BS1 · 29.4 kV maximum anode voltage · 110° deflection · 4 windings · 410 g

Manufacturer equivalents (9)

470980.00 · 470980.01 · 470980.02 · 470980.03 · 470980.04 · 470980.05 · 470980.06 · 47980.06 · 534 TX 0210

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 6698 · HR 6074 · HR 6260 · HR 6373

Accessories (2)

Parts the catalogue lists alongside this one. They are separate items, not part of the transformer.

• HR 1660 — EHT anode lead
• HR 16529 — Focus control

Fitted to (21)

NORDMENDE CHASIS ICC 5 · SABA CHASIS ICC 5 · THOMSON 56 M 657 · THOMSON 56 T 656 · THOMSON 56510 T · THOMSON 56558 T · THOMSON 67 M 677 · THOMSON 67 T 676 · THOMSON 67506 T · THOMSON 67555 T · THOMSON CHASIS ICC 5 · THOMSON CT 3613 · THOMSON CT 3663 · THOMSON CT 4613 · THOMSON CT 4663 · THOMSON D 56 CT · THOMSON D 56 DT · THOMSON D 56 FH · THOMSON D 67 CT · THOMSON D 67 DT · THOMSON D 67 FH

Search this part in the full database
