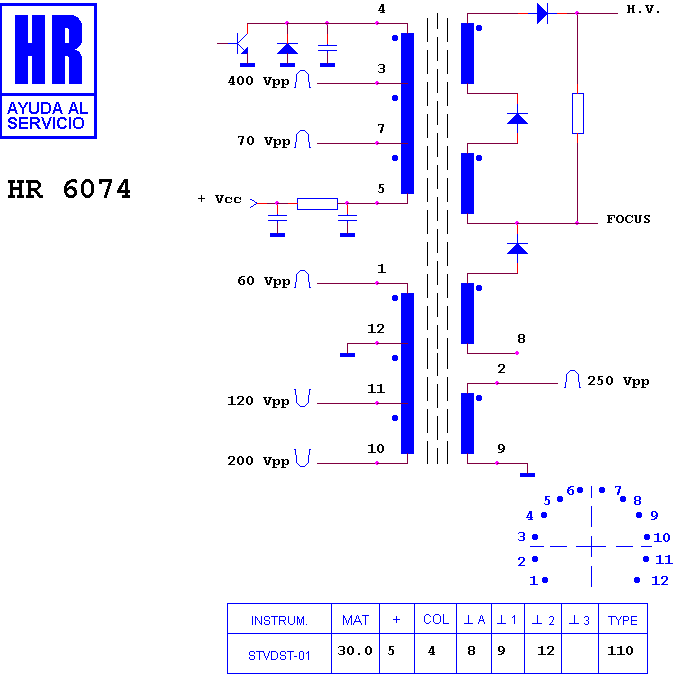

HR 6074

type ST · family 1BS1 · 30 kV maximum anode voltage · 110° deflection · 4 windings · 410 g

Manufacturer equivalents (5)

471160.00 · 471160.01 · 471160.02 · 471160.03 · 471160.04

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 6698 · HR 6260 · HR 6085 · HR 6373

Accessories (2)

Parts the catalogue lists alongside this one. They are separate items, not part of the transformer.

• HR 1660 — EHT anode lead
• HR 16529 — Focus control

Fitted to (1)

SABA M 63 U 75
