HR 46172

type SM · family 1WP1 · 21.6 kV maximum anode voltage · L° deflection · 3 windings · 474 g

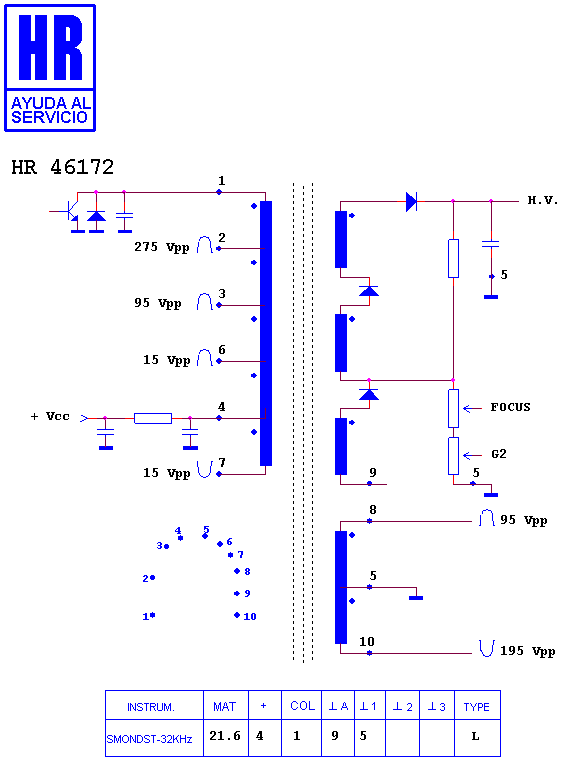

Schematic diagram for HR 46172
schematic

Manufacturer equivalents (12)

154 382 B · CF0710 · DNF-FN1419 · DNF-FN1419A · FN1419 · FN1419A · IP14026 · KFS 61410 · KFS61101 · KFS61101R · KFS61807A · LCECF0710

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 6658

Notes

THIS HR TRANSFORMER HAS THE PIN GROUND OF POTENTIOMETERS ANDH.V. CAPACITOR CONNECTED INTERNALLY

Fitted to (8)

ECOVISION MONITOR · ECOVISION NF 848 F · KDS-KOREA DATA SYSTEMS KD 1450 G · KDS-KOREA DATA SYSTEMS MONITOR · METRON MONITOR · METRON TCM 1448 G · TECHMEDIA MONITOR · TECHMEDIA TCM 1448 G
