HRT 508 PD

type TR · family 8500 · 214 g

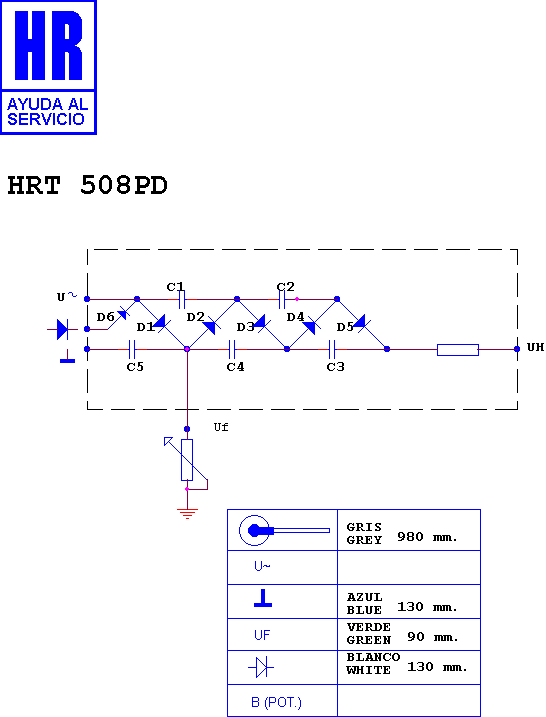

Schematic diagram for HRT 508 PD
schematic
Schematic diagram for HRT 508 PD
tripler

Manufacturer equivalents (6)

BG 1898-641-006 · BG 1898-641-007 · BG 1898-641-007 R · BG 1898-641-083 · KTS 805 TO FR 56 R · KTS 806 TO FR 56 R

Fitted to (1)

LAVIS 4026 (20 AX)

Search this part in the full database
