HRT 505 A

type TR · family 8500 · 204 g

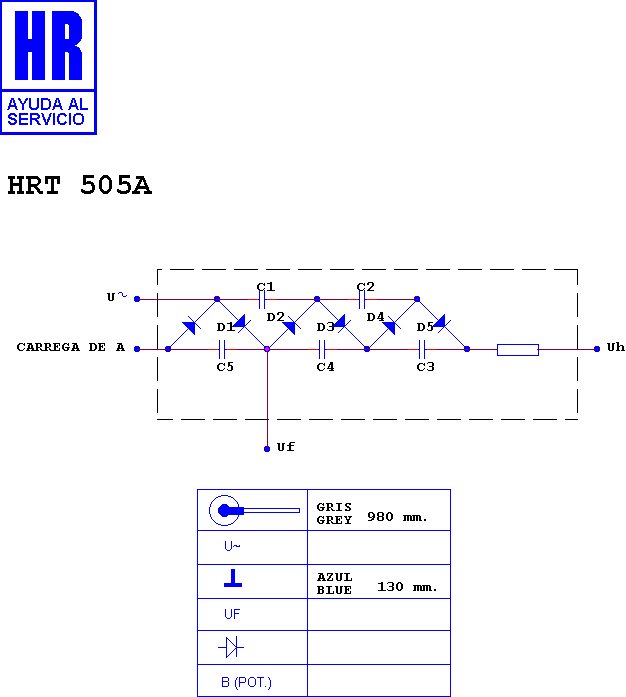

Schematic diagram for HRT 505 A — schematic

Schematic diagram for HRT 505 A — tripler

Manufacturer equivalents (1)
