HRT 264

type TR · family 8240 · 234 g

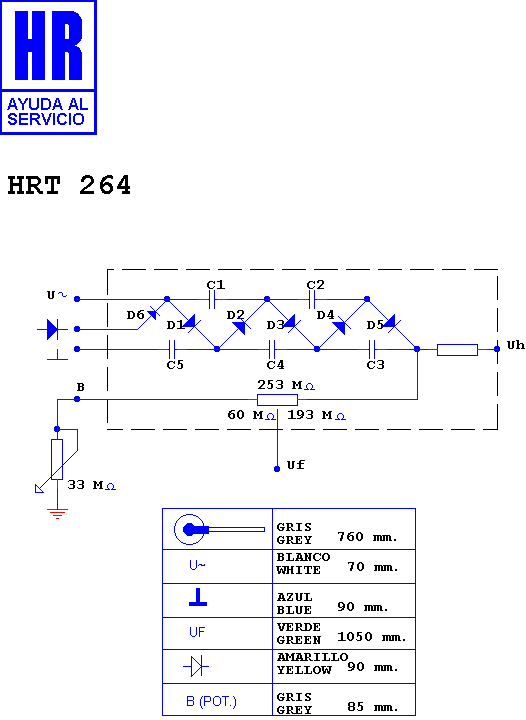

Schematic diagram for HRT 264
schematic
Schematic diagram for HRT 264
tripler

Manufacturer equivalents (4)

100 21 1159 · 264-00 · BG 2032-642-3006 · HSE 176-32-006

Fitted to (7)

METZ 7994 · METZ CHASIS 689 G · METZ CHASIS 689 G (84 CM) · METZ MALLORCA 84-10 VT 100 HZ · METZ MALLORCA 84-100 VT · METZ MALLORCA 84-100 VT 100 HZ · METZ MALLORCA COLOR
