HRT 257

type TR · family 8240 · 213 g

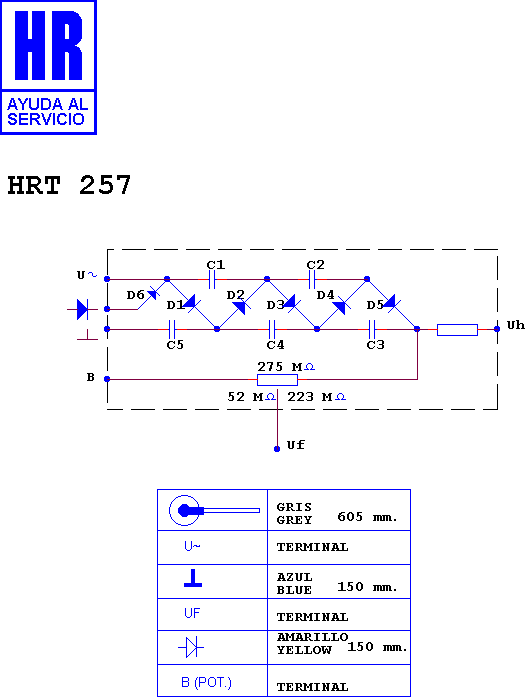

Schematic diagram for HRT 257 — schematic

Schematic diagram for HRT 257 — tripler

Manufacturer equivalents (2)

D-5 B · TVK 76 BE

Search this part in the full database
