HRT 243 BP

type TR · family 8240 · 239 g

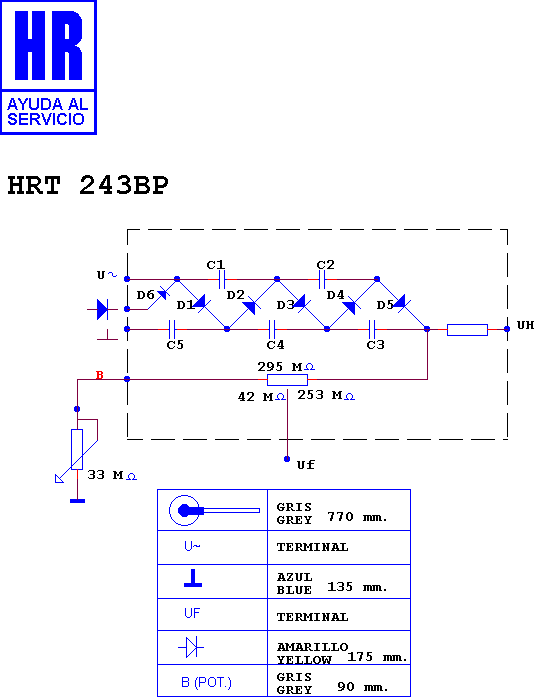

Schematic diagram for HRT 243 BP — schematic

Schematic diagram for HRT 243 BP — tripler

Manufacturer equivalents (2)

BG 1897-642-000 · BG 1897-642-090

Search this part in the full database
