HRT 239 BP

type TR · family 8225 · 212 g

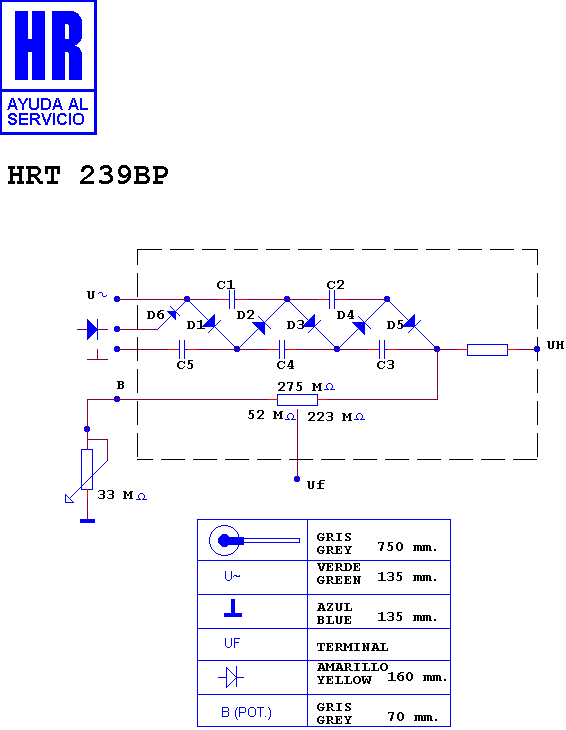

Schematic diagram for HRT 239 BP — schematic

Schematic diagram for HRT 239 BP — tripler

Manufacturer equivalents (1)

978000180

Search this part in the full database
