HRT 232 BP

type TR · family 8225 · 225 g

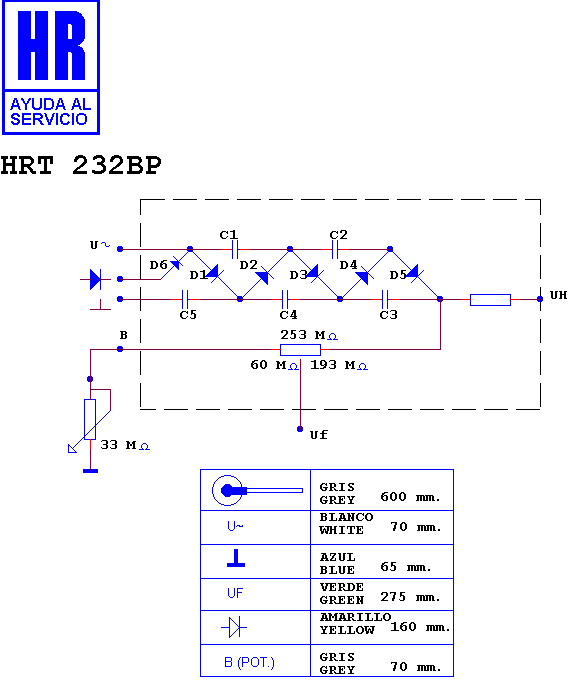

Schematic diagram for HRT 232 BP — schematic

Schematic diagram for HRT 232 BP — tripler

Manufacturer equivalents (1)

RTV 2097-642-346

Search this part in the full database
