HRT 228 BP

type TR · family 8225 · 225 g

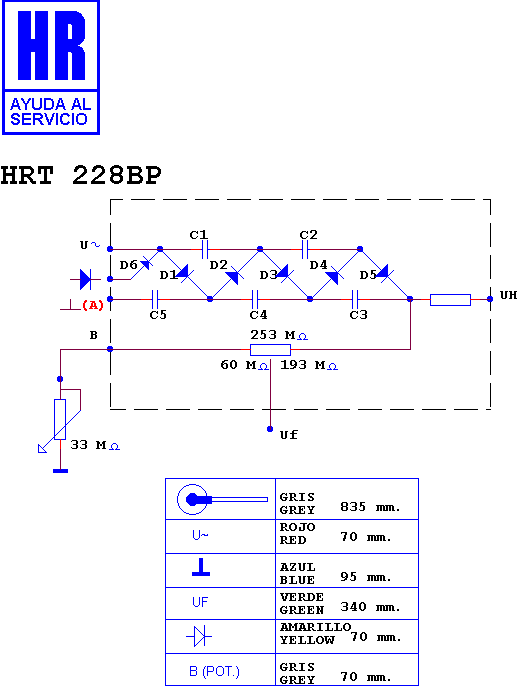

Schematic diagram for HRT 228 BP
schematic
Schematic diagram for HRT 228 BP
tripler

Manufacturer equivalents (3)

036-01908/0.5 · D92943-A7154-M211 · TVK 196-27 M 211

Fitted to (1)

SONITRON TVC 720
