HRT 217

type TR · family 8216 · 225 g

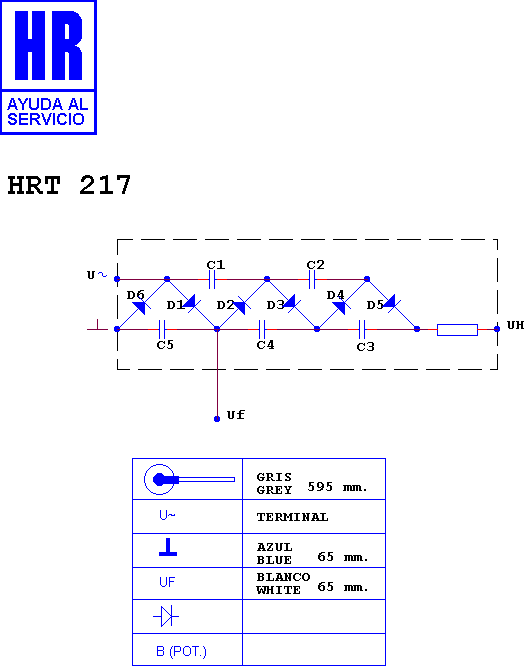

Schematic diagram for HRT 217
schematic
Schematic diagram for HRT 217
tripler

Manufacturer equivalents (4)

T 30 A 108 · T 30 A 180 · T 30 AP · TS 25-11 TDL

Fitted to (2)

NOKIA - ITT CHASIS CVC 20 · NOKIA - ITT CHASIS CVC 30
