HRT 216 PD

type TR · family 8216 · 225 g

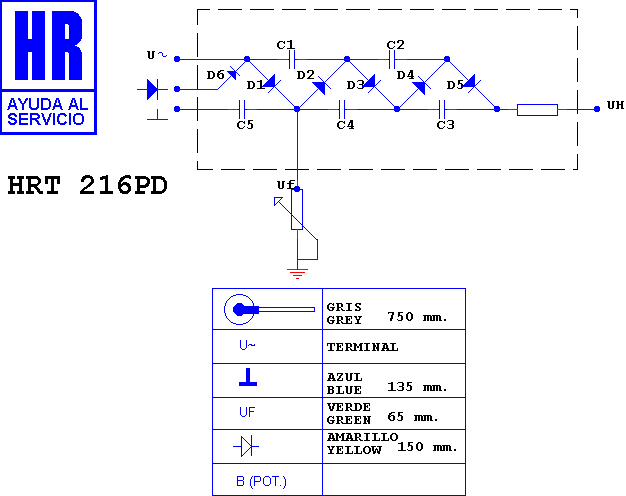

Schematic diagram for HRT 216 PD — schematic

Schematic diagram for HRT 216 PD — tripler

Manufacturer equivalents (1)

KTS 806 T 1 FR 56 R

Search this part in the full database
