HRT 216 C

type TR · family 8216 · 225 g

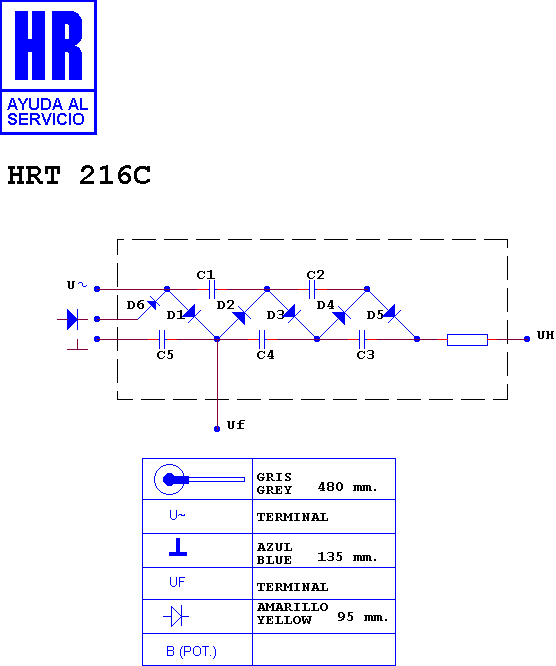

Schematic diagram for HRT 216 C — schematic

Schematic diagram for HRT 216 C — tripler

Manufacturer equivalents (2)

T 30 A 107 · TS 25-11 TGK

Fitted to (2)

BUSH-MURPHY-RANK T 20 · BUSH-MURPHY-RANK T 22
