HRT 207

type TR · family 8208 · 190 g

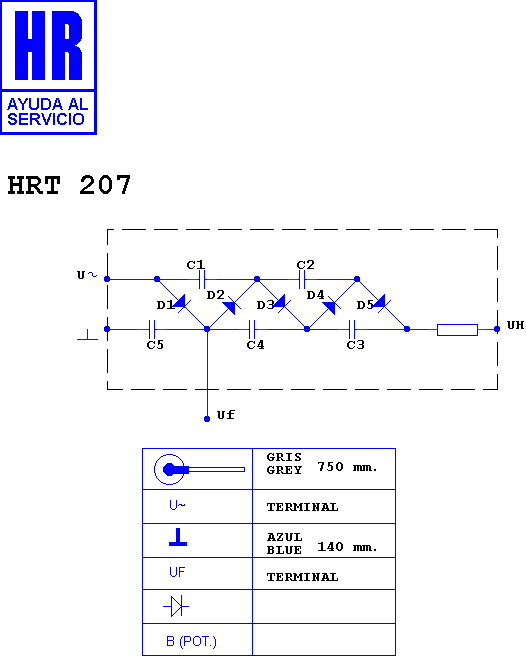

Schematic diagram for HRT 207
schematic
Schematic diagram for HRT 207
tripler

Manufacturer equivalents (9)

064 080 1 · B 92951-B3000-M000 · BG 2000-541-041 · HSE 82 · RTV 82-207 · T 30 Y 100 · TRIP 80 · TVK 82 · TVK 82-5

Fitted to (26)

LUMA ELEKTRONIK CHASIS HF 10 · LUMA ELEKTRONIK CHASIS HF 11 · LUMA ELEKTRONIK LF 56 H 96 · LUMA ELEKTRONIK LF 67 H 88 · LUMA ELEKTRONIK LF 67 H 89 · LUMA ELEKTRONIK LF 67 H 90 · LUMA ELEKTRONIK LF 67 H 98 · LUMA ELEKTRONIK LF 67 H 99 · NECKERMANN 764/574 · NECKERMANN 764/701 · NECKERMANN 764/922 · NECKERMANN 764/922 NA · QUELLE 030.076 A · QUELLE 03004 · QUELLE 03076 · QUELLE 1 C 02 · QUELLE TV 1 C 02 · QUELLE TV 1 C 42 · QUELLE UNIVERSUM TV 1 C 42 · SALORA 1 E 8 C · SALORA 1 E 8 D · SALORA 1 E 8 Q · SALORA 1 F 3 C · SALORA 1 F 6 · SALORA SCANCOLOR · SALORA SCANCOLOR ULTRA
