HR 9850

type CH · family 273 · 3 windings · 172 g

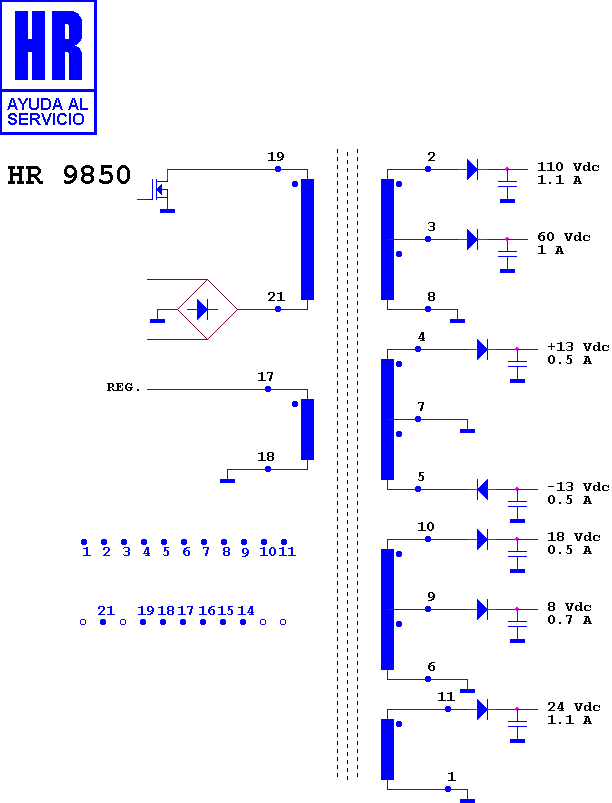

Schematic diagram for HR 9850 — schematic

Manufacturer equivalents (1)

TR 07.206

Search this part in the full database
