HR 9848

type CH · family 220 · 9 windings · 110 g

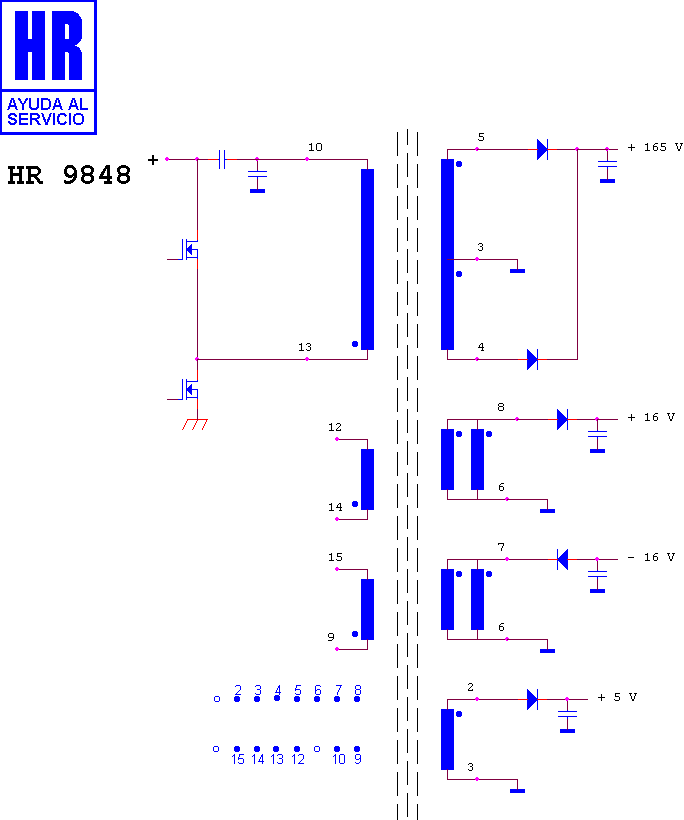

Schematic diagram for HR 9848
schematic

Manufacturer equivalents (2)

RTRNZ0582BMZZ · Z 0582 BM

Fitted to (3)

SHARP 54 GS 61 SN · SHARP 70 GS 61 SN · SHARP 70 GS 62 S

Search this part in the full database
