HR 9841

type CH · family 271 · 5 windings · 172 g

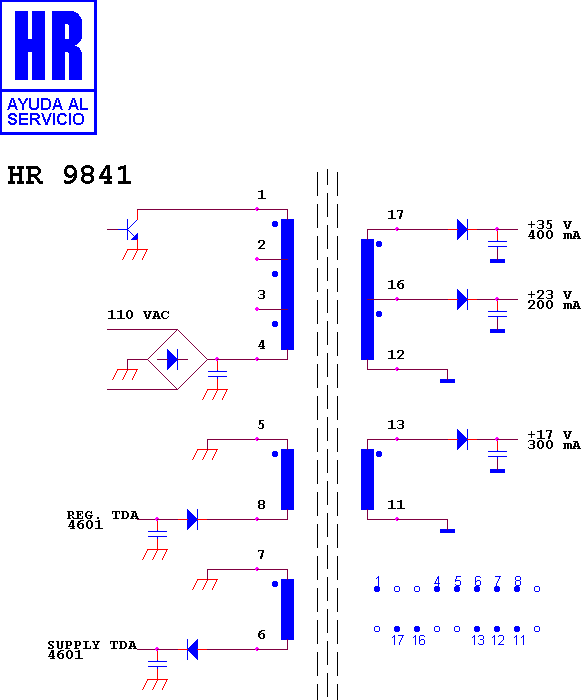

Schematic diagram for HR 9841 — schematic

Manufacturer equivalents (2)

2082.0023 · 28024530

Search this part in the full database
