HR 9838

type CH · family 274 · 3 windings · 126 g

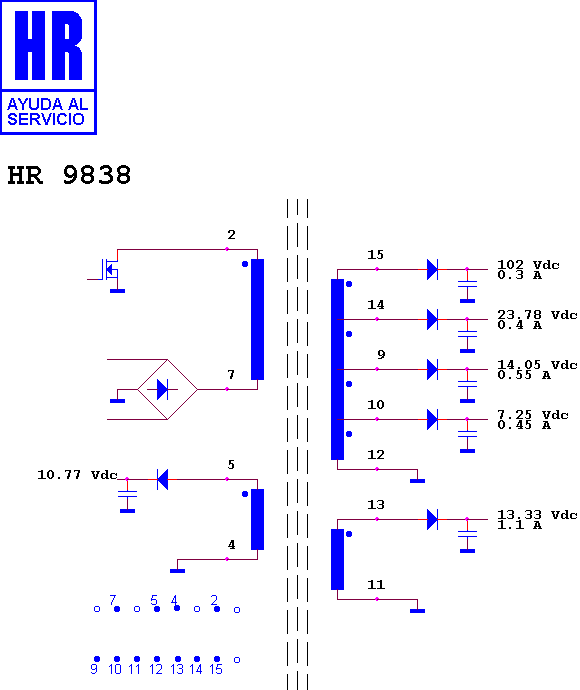

Schematic diagram for HR 9838 — schematic

Manufacturer equivalents (1)

HR 9838

Search this part in the full database
