HR 9835

type CH · family 274 · 4 windings · 172 g

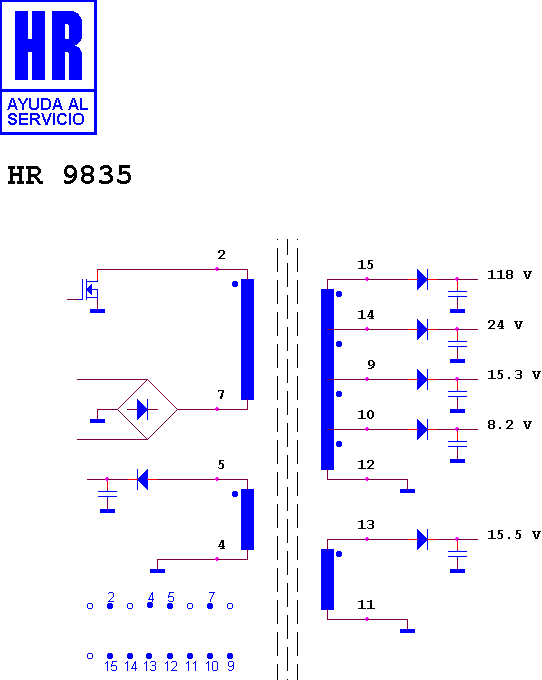

Schematic diagram for HR 9835 — schematic

Manufacturer equivalents (2)

432 888 · HR 9835-00

Search this part in the full database
